HowTo: Install Spryker in AWS environment

Last updated:
Edit on GitHub

This document provides additional information about the native configuration of AWS services and Spryker installation using the AWS cloud as a base of infrastructure.

Following the instructions, you can get Spryker running on AWS. The first part is devoted to the step-by-step configuration of the AWS native services like RDS, Elasticsearch Service, and ElastiCache to prepare a suitable infrastructure for running Spryker. The second part is the installation of Spryker itself.

Install AWS native services

To install Spryker in AWS, configure the following AWS native services:

  • Security Group
  • Managed relational database service (RDS)
  • Elasticsearch Service
  • ElastiCache

To create and configure the services, follow instructions in the following sections.

Create s security group

  1. Open the EC2 console.

EC2 console

  1. Click Create Security Group.

Create security group

  1. Fill out the outlined fields and click Create.

Choose security group

For more information about creating and configuring the security group, see Creating a Security Group and Adding Rules to a Security Group.

You need to choose the security group for all services and instances that you create following this instruction.

Create and configure RDS

  1. Open the RDS console. RDS console

  2. Click Create database.

Create database

  1. Select PostgreSQL.

Choose PostgreSQL

  1. Choose a use case.

For production purposes, we recommend choosing Multi-AZ Deployment.

Choose usecase

  1. Fill out all the outlined fields.

Choose database details

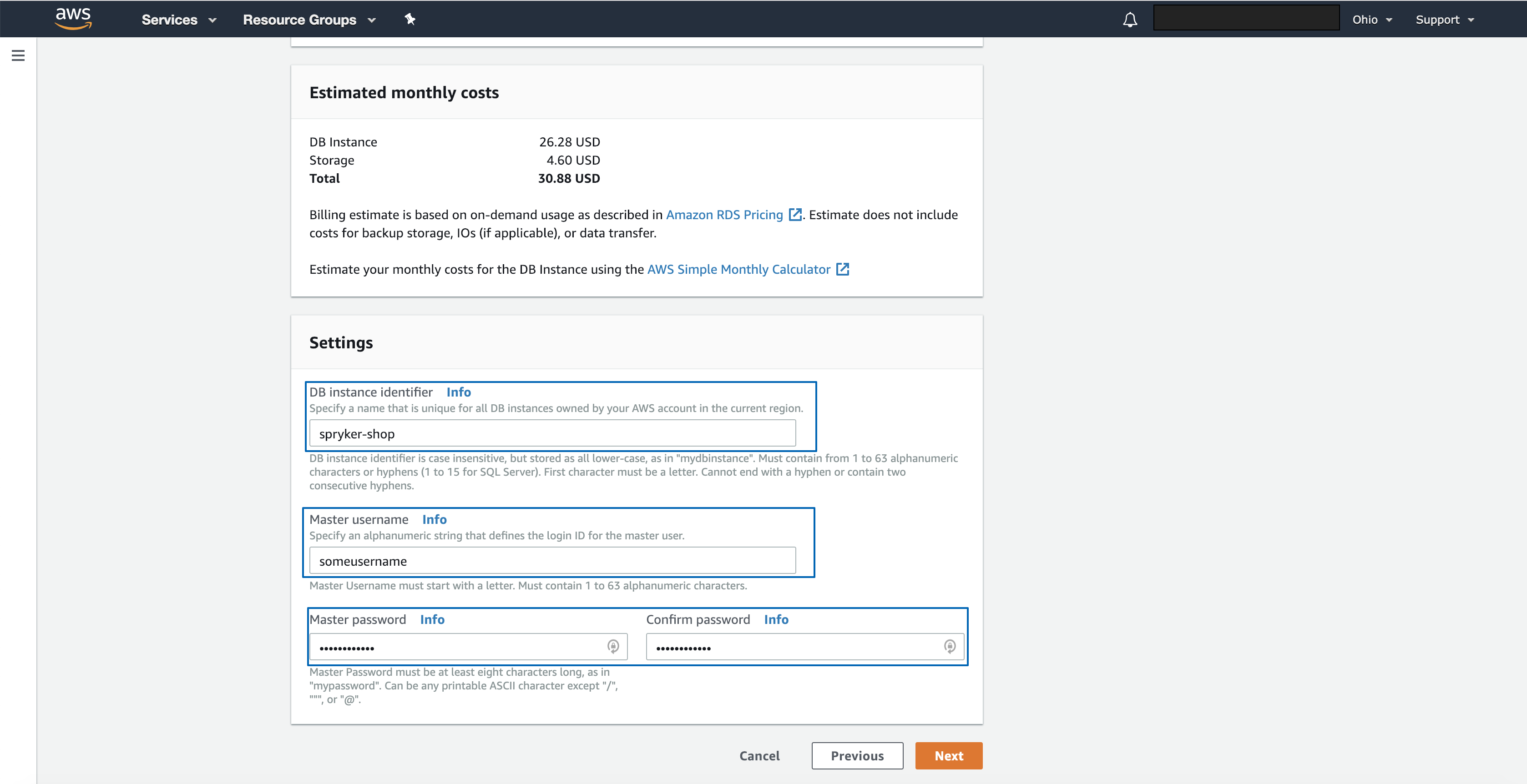

Database login details

Network and security

Database options

  1. Get DB Name, Endpoint, and port.

Get database name endpoint

For more information about creating the database, see Database creation manual.

Create the Elasticsearch service console

  1. Open the Elasticsearch service console.

Elasticsearch console

  1. Click Create a new domain.

Create new domain

  1. Fill out all the outlined fields.

  2. Choose a deployment type.

For production purposes, we recommend choosing the Production deployment type.

Deployment type

Define domain

VPC access

Domain access policy

  1. Get VPC endpoint.

Get VPS endpoint

For more information about how to create an Elasticsearch service domain, see Elasticseacrh service creation manual

Configure ElastiCache

  1. Open the ElastiCache console.

ElastiCache console

  1. Click Get Started Now.

Elastisearch - Get started now

  1. Fill out all the outlined fields.

Elastisearch config

  1. Get Primary Endpoint.

Primary endpoint

For more details, see ElastiCache creation manual.

Install and configure the EC2 instance

To Installing and configuring the EC2 instance, you need to

  • Create SSH key
  • Launch instance
  • Configure Elastic IP
  • Connect to the Instance

Each step is complex. Therefore, they are descriged separately in the following sections.

Create an SSH key

To create an SSH key, use the manual

Launch the instance

  1. Open EC2 console.

EC2 console

  1. Click Launch Instance.

Launch instance

  1. Select the Ubuntu server with the 64-bit (x86) configuration.

Choose OS

  1. Choose the instance type and click Next: Configure Instance Details.

Choose instance

  1. Leave default configuration and click Next: Add Storage.
  2. Add storage and click Next: Add Tags.

Add storage

  1. Add a Name tag and click Next: Configure Security Group.

Add tags

  1. Choose the security group which you have previously created and click Review and Launch.
  2. Choose the ssh key you have previously created, download it, and click Launch Instances.

Select SHH keys

Configure Elastic IP

  1. Open EC2 console.

EC2 console

  1. Click Allocate new address.

Allocate new address

  1. Leave the default setup and click Allocate.

Allocate

  1. Click Actions > Associate address.

Associate address

  1. Choose the Spryker instance and click Associate.

Choose Spryker instance

For more information about configuring the Elastic IP Address, see Allocating an Elastic IP Address and Associating an Elastic IP Address with a Running Instance

Connect to the instance

  1. Click Actions > Connect.

Connect action

  1. Connect to the Spryker instance using the provided details.

Connection instructions

Install additional software

To install Spryker in AWS, install and configure additional software. Use the following guidelines for instructions.

Install system tools

  1. Configure additional repositories:
sudo apt-get update
sudo apt-get install -q -y --no-install-recommends wget gnupg apt-transport-https
sudo add-apt-repository ppa:ondrej/php
curl -sL https://deb.nodesource.com/setup_10.x | sudo -E bash -
  1. Install additional software and dependencies:
sudo apt-get -q -y update
sudo apt-get install -q -y --no-install-recommends ca-certificates \
curl \
git \
graphviz \
libedit2 \
libpq5 \
libsqlite3-0 \
postgresql-client \
psmisc \
python-dev \
python-setuptools \
redis-tools \
unzip \
vim \
zip \
composer \
gcc \
g++ \
make  \
apache2-utils

Install PHP

sudo apt-get install -q -y php7.2-fpm \
php7.2-curl \
php7.2-gd \
php7.2-gmp \
php7.2-intl \
php7.2-bcmath \
php7.2-pgsql \
php-redis \
php7.2-xml \
php7.2-mbstring \
php7.2-bz2 \
php-ssh2 \
php-msgpack \
php-memcached \
php-imagick \
php-igbinary \
php7.2-opcache \
php7.2-zip \
php7.2-sqlite3 \
php7.2-mysql \
php7.2-intl \
php7.2-fpm \
php7.2-cli \
php7.2-dev

sudo update-alternatives --set php /usr/bin/php7.2
sudo update-alternatives --set phar /usr/bin/phar7.2
sudo update-alternatives --set phar.phar /usr/bin/phar.phar7.2
sudo update-alternatives --set phpize /usr/bin/phpize7.2
sudo update-alternatives --set php-config /usr/bin/php-config7.2

Configure PHP

  1. Create or update the following files using the provided templates:
/etc/php/7.2/fpm/php.ini
memory_limit = 1024M
[mail function]
sendmail_path = /usr/sbin/sendmail -t -i
/etc/php/7.2/fpm/pool.d/yves.conf
[yves]
clear_env = no
catch_workers_output = yes
listen = /tmp/.fpm.$pool.sock
listen.backlog = 1000
listen.allowed_clients = 127.0.0.1
listen.mode=0666
user = www-data
group = www-data
pm = dynamic
pm.max_children = 4
pm.start_servers = 4
pm.min_spare_servers = 4
pm.max_spare_servers = 4
; Avoid PHP memory leaks
pm.max_requests = 500

pm.status_path = /php-fpm-status-yves
ping.path = /fpm-ping.php
ping.response = OK

request_terminate_timeout = 1800

chdir = /

php_admin_value[memory_limit] = 256M
php_admin_value[expose_php] = off
php_admin_value[error_log] = /dev/stderr
/etc/php/7.2/fpm/pool.d/zed.conf
[zed]
clear_env = no
catch_workers_output = yes
listen = /tmp/.fpm.$pool.sock
listen.backlog = 1000
listen.allowed_clients = 127.0.0.1
listen.mode=0666
user = www-data
group = www-data
pm = dynamic
pm.max_children = 4
pm.start_servers = 4
pm.min_spare_servers = 4
pm.max_spare_servers = 4
; Avoid PHP memory leaks
pm.max_requests = 500

pm.status_path = /php-fpm-status-zed
ping.path = /fpm-ping.php
ping.response = OK

request_terminate_timeout = 1800

chdir = /

php_admin_value[memory_limit] = 256M
php_admin_value[expose_php] = off
php_admin_value[error_log] = /dev/stderr
/etc/php/7.2/fpm/pool.d/glue.conf
[glue]
clear_env = no
catch_workers_output = yes
listen = /tmp/.fpm.$pool.sock
listen.backlog = 1000
listen.allowed_clients = 127.0.0.1
listen.mode=0666
user = www-data
group = www-data
pm = dynamic
pm.max_children = 4
pm.start_servers = 4
pm.min_spare_servers = 4
pm.max_spare_servers = 4
; Avoid PHP memory leaks
pm.max_requests = 500

pm.status_path = /php-fpm-status-glue
ping.path = /fpm-ping.php
ping.response = OK

request_terminate_timeout = 1800

chdir = /

php_admin_value[memory_limit] = 256M
php_admin_value[expose_php] = off
php_admin_value[error_log] = /dev/stderr
  1. Edit the following file using the template:
/etc/php/7.2/fpm/conf.d/10-opcache.ini
;zend_extension=opcache.so
opcache.enable=1
opcache.enable_cli=1
opcache.file_cache=/var/tmp/opcache
opcache.max_accelerated_files=8192
opcache.memory_consumption=256
opcache.interned_strings_buffer=16
opcache.fast_shutdown=1

; Check if file updated each 2 seconds—for development
opcache.revalidate_freq=2
; Check if file updated each 60 seconds—for production
;opcache.revalidate_freq=60

; Workaround for PHP 7.2 bug
; https://bugs.php.net/bug.php?id=76029
opcache.optimization_level=0

Install Postfix

Postfix is a mail server used to send mail. To install it, run these commands:

sudo apt update
sudo apt install -q -y postfix

Install Nginx

Nginx is an open-source web server that proxies requests to PHP FPM by the FCGI protocol. Run these commands to install it:

sudo apt update
sudo apt-get  install -q -y nginx nginx-extras
sudo rm /etc/nginx/sites-enabled/default

Configure Nginx

  1. Update {{YVES_HOST}} and application_store variables for each store (AT, DE, US), and create /etc/nginx/conf.d/vhost-yves-{{STORE_NAME}}.conf using the template:
vhost-yves.conf template
upstream backend-yves {
server unix:/tmp/.fpm.yves.sock;
}

server {
listen 80 default;
server_name {{YVES_HOST}};
keepalive_timeout 0;
access_log /var/log/nginx/yves.log;

root /data/public/Yves;

set $application_env staging;
set $application_store DE;

# Maintenance mode
#include /etc/nginx/maintenance.conf;

# Static files—allow only specified here paths

# all other resources must be served by static host (and cached, if possible, by reverse proxy or cdn)

location ~ (/assets/|/maintenance.html|/favicon.ico|/crossdomain.xml) {
access_log off;
expires 30d;
add_header Pragma public;
add_header Cache-Control "public";
try_files $uri $uri/ =404;
more_clear_headers 'X-Powered-By' 'X-Store' 'X-Locale' 'X-Env' 'Server';
}

location ~ \.(jpg|gif|png|css|js|html|xml|ico|txt|csv|map)$ {
access_log off;
expires 30d;
add_header Pragma public;
add_header Cache-Control "public";
try_files $uri /index.php?$args;
more_clear_headers 'X-Powered-By' 'X-Store' 'X-Locale' 'X-Env' 'Server';
}

# PHP application

location / {
# Frontend—force browser to use new rendering engine
more_set_headers "X-UA-Compatible: IE=Edge,chrome=1";

# Terminate OPTIONS requests immediately. No need for calling php
# OPTIONS is used by Ajax from http to https as a pre-flight-request
# see http://en.wikipedia.org/wiki/Cross-origin_resource_sharing
if ($request_method = OPTIONS) {
return 200;
}

add_header X-Server $hostname;
fastcgi_pass backend-yves;
fastcgi_index index.php;
include /etc/nginx/fastcgi_params;
fastcgi_param SCRIPT_NAME /index.php;
fastcgi_param SCRIPT_FILENAME $document_root/index.php;

fastcgi_param APPLICATION_ENV $application_env;
fastcgi_param APPLICATION_STORE $application_store;

more_clear_headers 'X-Powered-By' 'X-Store' 'X-Locale' 'X-Env' 'Server';

}

}
  1. Create a passwd file:
sudo htpasswd -c /etc/nginx/.htpasswd {{SOME_USER}}
  1. Update {{ZED_HOST}} and application_store variables for each store (AT, DE, US), and create /etc/nginx/conf.d/vhost-zed-{{STORE_NAME}}.conf using this template:
vhost-zed.conf template
upstream backend-zed {
server unix:/tmp/.fpm.zed.sock;
}

server {
listen 80;
server_name {{ZED_HOST}};
keepalive_timeout 0;
access_log /var/log/nginx/zed.log;

root /data/public/Zed;

set $application_env staging;
set $application_store DE;

# Maintenance mode

#include /etc/nginx/maintenance.conf;

# Timeout for ZED requests—10 minutes
# (longer requests must be converted to jobs and executed by jenkins)
proxy_read_timeout 600s;
proxy_send_timeout 600s;
fastcgi_read_timeout 600s;
client_body_timeout 600s;
client_header_timeout 600s;
send_timeout 600s;

# Static files can be delivered directly
location ~ (/assets/|/favicon.ico|/robots.txt) {
access_log off;
expires 30d;
add_header Pragma public;
add_header Cache-Control "public, must-revalidate, proxy-revalidate";
try_files $uri =404;
}

# PHP application gets all other requests
location / {
add_header X-Server $hostname;
fastcgi_pass backend-zed;
fastcgi_index index.php;
include /etc/nginx/fastcgi_params;
fastcgi_param SCRIPT_NAME /index.php;
fastcgi_param SCRIPT_FILENAME $document_root/index.php;

fastcgi_param APPLICATION_ENV $application_env;
fastcgi_param APPLICATION_STORE $application_store;

more_clear_headers 'X-Powered-By' 'X-Store' 'X-Locale' 'X-Env' 'Server';

}

}
  1. Update {{GLUE_HOST}} and application_store variables for each store (AT, DE, US), and create /etc/nginx/conf.d/vhost-glue-{{STORE_NAME}}.conf using the template:
vhost-glue.conf template
upstream backend-glue {
server unix:/tmp/.fpm.glue.sock;
}

server {
## Listener for production/staging—requires external LoadBalancer directing traffic to this port
#listen 10001;

# istener for testing/development—one host only, doesn't require external LoadBalancer
listen 80;

server_name {{GLUE_HOST}};
keepalive_timeout 0;
access_log /var/log/nginx/glue.log;

root /data/public/Glue;
# Maintenance mode
#include /etc/nginx/maintenance.conf;

set $application_env staging;
set $application_store DE;

# Timeout for Api requests—10 minutes

# (longer requests must be converted to jobs and executed by Jenkins)

proxy_read_timeout 600s;
proxy_send_timeout 600s;
fastcgi_read_timeout 600s;
client_body_timeout 600s;
client_header_timeout 600s;
send_timeout 600s;

# Static files can be delivered directly
location ~ (/assets/|/favicon.ico|/robots.txt) {
access_log off;
expires 30d;
add_header Pragma public;
add_header Cache-Control "public, must-revalidate, proxy-revalidate";
try_files $uri =404;
}

# PHP application gets all other requests
location / {
add_header X-Server $hostname;
fastcgi_pass backend-glue;
fastcgi_index index.php;
include /etc/nginx/fastcgi_params;
fastcgi_param SCRIPT_NAME /index.php;
fastcgi_param APPLICATION_ENV $application_env;
fastcgi_param APPLICATION_STORE $application_store;
fastcgi_param SCRIPT_FILENAME $document_root/index.php;
more_clear_headers 'X-Powered-By' 'X-Store' 'X-Locale' 'X-Env' 'Server';
}

}
  1. Restart php-fpm service:
sudo service php7.2-fpm restart
  1. Create /etc/nginx/conf.d/jenkins.conf:
/etc/nginx/conf.d/jenkins.conf
server {


auth_basic 'Administrator’s Area';
auth_basic_user_file /etc/nginx/.htpasswd;

listen 80;
server_name {{JENKINS_HOST}};

location / {


access_log /var/log/nginx/jenkins.log;
proxy_set_header Host $host:$server_port;
proxy_set_header X-Real-IP $remote_addr;
proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
proxy_set_header X-Forwarded-Proto $scheme;

# Fix the "It appears that your reverse proxy set up is broken" error.
proxy_pass http://127.0.0.1:8080;
proxy_read_timeout 90;

# Required for new HTTP-based CLI
proxy_http_version 1.1;
proxy_request_buffering off;
# workaround for https://issues.jenkins-ci.org/browse/JENKINS-45651
#add_header 'X-SSH-Endpoint' 'jenkins.domain.tld:50022' always;

}
}
  1. Create /etc/nginx/fastcgi_params using the template:
fastcgi_params template
fastcgi_param QUERY_STRING $query_string;
fastcgi_param REQUEST_METHOD $request_method;
fastcgi_param CONTENT_TYPE $content_type;
fastcgi_param CONTENT_LENGTH $content_length;

fastcgi_param SCRIPT_FILENAME $request_filename;
fastcgi_param SCRIPT_NAME $fastcgi_script_name;
fastcgi_param REQUEST_URI $request_uri;
fastcgi_param DOCUMENT_URI $document_uri;
fastcgi_param DOCUMENT_ROOT $document_root;
fastcgi_param SERVER_PROTOCOL $server_protocol;

fastcgi_param GATEWAY_INTERFACE CGI/1.1;
fastcgi_param SERVER_SOFTWARE nginx/$nginx_version;

fastcgi_param REMOTE_ADDR $remote_addr;
fastcgi_param REMOTE_PORT $remote_port;
fastcgi_param SERVER_ADDR $server_addr;
fastcgi_param SERVER_PORT $server_port;
fastcgi_param SERVER_NAME $server_name;

# PHP only, required if PHP was built with --enable-force-cgi-redirect
fastcgi_param REDIRECT_STATUS 200;

# Are we using ssl? Backward compatibility env, to emulate Apache.
# According to RFC, app must take a look at "X-Forwarded-Proto" header to deterimine if SSL is on.
if ($http_x_forwarded_proto = "https") {
set $have_https on;
}
fastcgi_param HTTPS $have_https;

# Pass request start time to CGI script—NewRelic uses this to monitor queue wait time
fastcgi_param HTTP_X_REQUEST_START "t=${msec}";

Install Node.js

sudo apt-get install -y nodejs

Insall RabbitMQ

Run the commands as root:

wget https://packages.erlang-solutions.com/erlang-solutions_1.0_all.deb
wget -O- https://www.rabbitmq.com/rabbitmq-release-signing-key.asc | sudo apt-key add -
sudo dpkg -i erlang-solutions_1.0_all.deb
wget -O- https://dl.bintray.com/rabbitmq/Keys/rabbitmq-release-signing-key.asc | sudo apt-key add -
wget -O- https://www.rabbitmq.com/rabbitmq-release-signing-key.asc | sudo apt-key add -
echo "deb https://dl.bintray.com/rabbitmq/debian $(lsb_release -sc) main" | sudo tee /etc/apt/sources.list.d/rabbitmq.list
sudo apt-get update
sudo apt-get install -y rabbitmq-server

Configure RabbitMQ

  • Service configuration.
sudo service rabbitmq-server start
sudo rabbitmq-plugins enable rabbitmq_management
sudo chown -R rabbitmq:rabbitmq /var/lib/rabbitmq/
  • Admin user configuration.
sudo rabbitmqctl add_user admin password
sudo rabbitmqctl add_vhost /DE_spryker_zed
sudo rabbitmqctl set_user_tags admin administrator
sudo rabbitmqctl set_permissions -p /DE_spryker_zed admin ".*" ".*" ".*"

Repeat for /AT_spryker_zed, /US_spryker_zed virtual hosts.

  • Spryker user configuration.
sudo rabbitmqctl add_user spryker password
sudo rabbitmqctl set_user_tags spryker administrator
sudo rabbitmqctl set_permissions -p /DE_spryker_zed spryker ".*" ".*" ".*"

Repeat for /AT_spryker_zed, /US_spryker_zed virtual hosts.

Install Jenkins

  1. Run the commands as root:
wget -q -O - https://pkg.jenkins.io/debian/jenkins-ci.org.key | sudo apt-key add -
sudo sh -c 'echo deb http://pkg.jenkins.io/debian-stable binary/>/etc/apt/sources.list.d/jenkins.list'
sudo apt-get update
sudo apt-get install -y jenkins=2.164.3 openjdk-8-jdk
  1. Update java configuration:
sudo update-alternatives --set java /usr/lib/jvm/java-8-openjdk-amd64/jre/bin/java
  1. Stop Jenkins service:
sudo service jenkins stop

Configure Jenkins

  1. Change the JENKINS_USER variable in the /etc/init.d/jenkins and /etc/default/jenkins files to JENKINS_USER="www-data".
  2. Create an init scripts directory:
sudo mkdir -p /var/lib/jenkins/init.groovy.d/
  1. Create an init script which disabled CSRF.

/var/lib/jenkins/init.groovy.d/init.groovy

import jenkins.model.Jenkins

def instance = Jenkins.instance
instance.setCrumbIssuer(null)
  1. Change the owner of jenkins folders:
sudo chown -R www-data:www-data /var/lib/jenkins
sudo chown -R www-data:www-data /var/cache/jenkins
sudo chown -R www-data:www-data /var/log/jenkins
  1. Reload services configuration:
sudo systemctl daemon-reload
  1. Update Jenkins configuration file:
/var/lib/jenkins/config.xml
<?xml version='1.1' encoding='UTF-8'?>
<hudson>
<disabledAdministrativeMonitors>
<string>jenkins.CLI</string>
    <string>jenkins.diagnostics.SecurityIsOffMonitor</string>
</disabledAdministrativeMonitors>
    <version>2.164.3</version>
<installStateName>DOWNGRADE</installStateName>
    <numExecutors>2</numExecutors>
<mode>NORMAL</mode>
    <useSecurity>true</useSecurity>
<authorizationStrategy class="hudson.security.AuthorizationStrategy$Unsecured"/>
<securityRealm class="hudson.security.SecurityRealm$None"/>
<disableRememberMe>false</disableRememberMe>
<projectNamingStrategy class="jenkins.model.ProjectNamingStrategy$DefaultProjectNamingStrategy"/>
    <workspaceDir>${JENKINS_HOME}/workspace/${ITEM_FULL_NAME}</workspaceDir>
    <buildsDir>${ITEM_ROOTDIR}/builds</buildsDir>
<jdks/>
<viewsTabBar class="hudson.views.DefaultViewsTabBar"/>
<myViewsTabBar class="hudson.views.DefaultMyViewsTabBar"/>
<clouds/>
<scmCheckoutRetryCount>0</scmCheckoutRetryCount>
<views>
<hudson.model.AllView>
<owner class="hudson" reference="../../.."/>
<name>all</name>
    <filterExecutors>false</filterExecutors>
<filterQueue>false</filterQueue>
>properties class="hudson.model.View$PropertyList"/>
</hudson.model.AllView>
    </views>
    <primaryView>all</primaryView>
<slaveAgentPort>-1</slaveAgentPort>
    <label></label>
<crumbIssuer class="hudson.security.csrf.DefaultCrumbIssuer">
    <excludeClientIPFromCrumb>false</excludeClientIPFromCrumb>
</crumbIssuer>
<nodeProperties/>
<globalNodeProperties/>
    </hudson>
  1. Restart Jenkins service:
sudo service jenkins start

Configure system

  1. Change swappiness configuration:
echo "vm.swappiness=5" | sudo tee /etc/sysctl.conf
sudo sysctl -p
  1. Change file limit configuration:
ulimit -n 65535
  1. Create logrotate configuration for Spryker:

/etc/logrotate.d/spryker

/data/data/*/logs/*/*.log {
daily
missingok
rotate 14
compress
delaycompress
notifempty
create 0640 www-data www-data
sharedscripts
postrotate
/bin/kill -SIGUSR1 `cat /run/php-fpm/php-fpm.pid 2>/dev/null` 2>/dev/null || true
endscript
su www-data www-data
}

Install Spryker

  1. Create a data folder:
sudo mkdir /data
sudo chown ubuntu /data
cd /data
  1. Clone the project:
git clone https://github.com/spryker-shop/b2c-demo-shop.git ./
git checkout tags/
  1. Create local configurations using the template.

Update all variables in curly braces such as {{RDS_USERNAME}} or {{REDIS_ENDPOINT}}.

/data/config/Shared/config_local.php
<?php
use Pyz\Shared\Scheduler\SchedulerConfig;
use Spryker\Shared\Application\ApplicationConstants;
use Spryker\Shared\Collector\CollectorConstants;
use Spryker\Shared\Customer\CustomerConstants;
use Spryker\Shared\Event\EventConstants;
use Spryker\Shared\GlueApplication\GlueApplicationConstants;
use Spryker\Shared\Kernel\KernelConstants;
use Spryker\Shared\Newsletter\NewsletterConstants;
use Spryker\Shared\Oauth\OauthConstants;
use Spryker\Shared\ProductManagement\ProductManagementConstants;
use Spryker\Shared\PropelQueryBuilder\PropelQueryBuilderConstants;
use Spryker\Shared\Propel\PropelConstants;
use Spryker\Shared\RabbitMq\RabbitMqEnv;
use Spryker\Shared\Router\RouterConstants;
use Spryker\Shared\Search\SearchConstants;
use Spryker\Shared\SearchElasticsearch\SearchElasticsearchConstants;
use Spryker\Shared\Scheduler\SchedulerConstants;
use Spryker\Shared\SchedulerJenkins\SchedulerJenkinsConfig;
use Spryker\Shared\SchedulerJenkins\SchedulerJenkinsConstants;
use Spryker\Shared\Session\SessionConstants;
use Spryker\Shared\Session\SessionConfig;
use Spryker\Shared\SessionFile\SessionFileConstants;
use Spryker\Shared\SessionRedis\SessionRedisConfig;
use Spryker\Shared\SessionRedis\SessionRedisConstants;
use Spryker\Shared\StorageRedis\StorageRedisConstants;
use Spryker\Shared\Setup\SetupConstants;
use Spryker\Shared\Storage\StorageConstants;
use Spryker\Shared\Twig\TwigConstants;
use Spryker\Shared\ZedNavigation\ZedNavigationConstants;
use Spryker\Shared\ZedRequest\ZedRequestConstants;


// ---------- KV storage
$config[StorageConstants::STORAGE_KV_SOURCE] = 'redis';

$config[StorageRedisConstants::STORAGE_REDIS_PERSISTENT_CONNECTION] = true;
$config[StorageRedisConstants::STORAGE_REDIS_PROTOCOL] = 'redis';
$config[StorageRedisConstants::STORAGE_REDIS_HOST] = '{{ REDIS_ENDPOINT }}';
$config[StorageRedisConstants::STORAGE_REDIS_PORT] = '{{ REDIS_PORT }}';
$config[StorageRedisConstants::STORAGE_REDIS_PASSWORD] = false;
$config[StorageRedisConstants::STORAGE_REDIS_DATABASE] = 0;

// ---------- Session
$config[SessionConstants::YVES_SESSION_SAVE_HANDLER] = SessionRedisConfig::SESSION_HANDLER_REDIS_LOCKING;
$config[SessionConstants::YVES_SESSION_TIME_TO_LIVE] = SessionConfig::SESSION_LIFETIME_1_HOUR;
$config[SessionRedisConstants::YVES_SESSION_TIME_TO_LIVE] = $config[SessionConstants::YVES_SESSION_TIME_TO_LIVE];
$config[SessionFileConstants::YVES_SESSION_TIME_TO_LIVE] = $config[SessionConstants::YVES_SESSION_TIME_TO_LIVE];
$config[SessionConstants::YVES_SESSION_COOKIE_TIME_TO_LIVE] = SessionConfig::SESSION_LIFETIME_0_5_HOUR;
$config[SessionFileConstants::YVES_SESSION_FILE_PATH] = session_save_path();
$config[SessionConstants::YVES_SESSION_PERSISTENT_CONNECTION] = $config[StorageRedisConstants::STORAGE_REDIS_PERSISTENT_CONNECTION];
$config[SessionConstants::ZED_SESSION_SAVE_HANDLER] = SessionRedisConfig::SESSION_HANDLER_REDIS;
$config[SessionConstants::ZED_SESSION_TIME_TO_LIVE] = SessionConfig::SESSION_LIFETIME_1_HOUR;
$config[SessionRedisConstants::ZED_SESSION_TIME_TO_LIVE] = $config[SessionConstants::ZED_SESSION_TIME_TO_LIVE];
$config[SessionFileConstants::ZED_SESSION_TIME_TO_LIVE] = $config[SessionConstants::ZED_SESSION_TIME_TO_LIVE];
$config[SessionConstants::ZED_SESSION_COOKIE_TIME_TO_LIVE] = SessionConfig::SESSION_LIFETIME_BROWSER_SESSION;
$config[SessionFileConstants::ZED_SESSION_FILE_PATH] = session_save_path();
$config[SessionConstants::ZED_SESSION_PERSISTENT_CONNECTION] = $config[StorageRedisConstants::STORAGE_REDIS_PERSISTENT_CONNECTION];
$config[SessionRedisConstants::LOCKING_TIMEOUT_MILLISECONDS] = 0;
$config[SessionRedisConstants::LOCKING_RETRY_DELAY_MICROSECONDS] = 0;
$config[SessionRedisConstants::LOCKING_LOCK_TTL_MILLISECONDS] = 0;

$config[SessionRedisConstants::YVES_SESSION_REDIS_PROTOCOL] = $config[StorageRedisConstants::STORAGE_REDIS_PROTOCOL];
$config[SessionRedisConstants::YVES_SESSION_REDIS_HOST] = $config[StorageRedisConstants::STORAGE_REDIS_HOST];
$config[SessionRedisConstants::YVES_SESSION_REDIS_PORT] = $config[StorageRedisConstants::STORAGE_REDIS_PORT];
$config[SessionRedisConstants::YVES_SESSION_REDIS_PASSWORD] = $config[StorageRedisConstants::STORAGE_REDIS_PASSWORD];
$config[SessionRedisConstants::YVES_SESSION_REDIS_DATABASE] = 1;

$config[SessionRedisConstants::ZED_SESSION_REDIS_PROTOCOL] = $config[StorageRedisConstants::STORAGE_REDIS_PROTOCOL];
$config[SessionRedisConstants::ZED_SESSION_REDIS_HOST] = $config[StorageRedisConstants::STORAGE_REDIS_HOST];
$config[SessionRedisConstants::ZED_SESSION_REDIS_PORT] = $config[StorageRedisConstants::STORAGE_REDIS_PORT];
$config[SessionRedisConstants::ZED_SESSION_REDIS_PASSWORD] = $config[StorageRedisConstants::STORAGE_REDIS_PASSWORD];
$config[SessionRedisConstants::ZED_SESSION_REDIS_DATABASE] = 2;

/** Database credentials **/
$config[PropelConstants::ZED_DB_USERNAME] = '{{RDS_USERNAME}}';
$config[PropelConstants::ZED_DB_PASSWORD] = '{{RDS_PASSWORD}}';
$config[PropelConstants::ZED_DB_HOST] = '{{RDS_ENDPOINT}}';
$config[PropelConstants::ZED_DB_PORT] = '5432';
$config[PropelConstants::ZED_DB_ENGINE]
    = $config[PropelQueryBuilderConstants::ZED_DB_ENGINE]
    = $config[PropelConstants::ZED_DB_ENGINE_PGSQL];
$config[PropelConstants::USE_SUDO_TO_MANAGE_DATABASE] = false;


/** Elasticsearch  */
$config[ApplicationConstants::ELASTICA_PARAMETER__HOST] = '{{ELASTICSEARCH_ENDPOINT WITHOUT HTTPS:// and trailing /}}';
$config[ApplicationConstants::ELASTICA_PARAMETER__PORT] = '443';
$config[ApplicationConstants::ELASTICA_PARAMETER__INDEX_NAME]
    = $config[CollectorConstants::ELASTICA_PARAMETER__INDEX_NAME]
    = $config[SearchConstants::ELASTICA_PARAMETER__INDEX_NAME]
    = 'de_search';
unset($config[SearchConstants::ELASTICA_PARAMETER__AUTH_HEADER]);
$ELASTICA_PARAMETER__EXTRA = [
    // AWS ElasticSearch service additional parameters for aws/aws-sdk-php module
    //'aws_region' => 'eu-central-1',
    //'transport' => 'AwsAuthV4'
];
$config[ApplicationConstants::ELASTICA_PARAMETER__EXTRA] = $ELASTICA_PARAMETER__EXTRA;
$config[SearchConstants::ELASTICA_PARAMETER__EXTRA] = $ELASTICA_PARAMETER__EXTRA;

$config[SearchConstants::ELASTICA_PARAMETER__HOST]
    = $config[SearchElasticsearchConstants::HOST] = '{{ELASTICSEARCH_ENDPOINT WITHOUT HTTPS:// and trailing /}}';
$config[SearchConstants::ELASTICA_PARAMETER__PORT]
    = $config[SearchElasticsearchConstants::PORT] = '443';
$config[SearchConstants::ELASTICA_PARAMETER__EXTRA]
    = $config[SearchElasticsearchConstants::EXTRA] = $ELASTICA_PARAMETER__EXTRA;

// ---------- Scheduler
$config[SchedulerConstants::ENABLED_SCHEDULERS] = [
    SchedulerConfig::SCHEDULER_JENKINS,
];
$config[SchedulerJenkinsConstants::JENKINS_CONFIGURATION] = [
    SchedulerConfig::SCHEDULER_JENKINS => [
        SchedulerJenkinsConfig::SCHEDULER_JENKINS_BASE_URL => 'http://' . 'localhost' . ':' . '8080' . '/',
    ],
];


/** RabbitMQ **/
$config[RabbitMqEnv::RABBITMQ_API_HOST] = '{{RABBITMQ_HOST}}';
$config[RabbitMqEnv::RABBITMQ_API_PORT] = '15672';
$config[RabbitMqEnv::RABBITMQ_API_USERNAME] = '{{RABBITMQ_USERNAME}}';
$config[RabbitMqEnv::RABBITMQ_API_PASSWORD] = '{{RABBITMQ_PASSWORD}}';

/** Debugging **/
$config[EventConstants::LOGGER_ACTIVE] = true;

/** Add Glue API auth parameters **/
$config[OauthConstants::PRIVATE_KEY_PATH] = 'file://' . APPLICATION_ROOT_DIR . '/config/Zed/dev_only_private.key';
$config[OauthConstants::PUBLIC_KEY_PATH] = 'file://' . APPLICATION_ROOT_DIR . '/config/Zed/dev_only_public.key';

/** Optimizing **/
/** Deactivate All Debug Functions And the Symfony Toolbar **/
$config[ApplicationConstants::ENABLE_APPLICATION_DEBUG] = false;
$config[ApplicationConstants::ENABLE_WEB_PROFILER] = false;
$config[PropelConstants::PROPEL_DEBUG] = false;

/** Activate Twig Compiler **/
$config[TwigConstants::ZED_TWIG_OPTIONS] = [
   'cache' => new FilesystemCache(sprintf(
	'%s/data/%s/cache/Zed/twig',
	 APPLICATION_ROOT_DIR, 'DE'),
	 Twig_Cache_Filesystem::FORCE_BYTECODE_INVALIDATION),
];

$config[TwigConstants::YVES_TWIG_OPTIONS] = [
    'cache' => new FilesystemCache(sprintf(
	'%s/data/%s/cache/Yves/twig',
	 APPLICATION_ROOT_DIR, 'DE'),
	 Twig_Cache_Filesystem::FORCE_BYTECODE_INVALIDATION),
];

/** Activate Twig Path Cache **/
$config[TwigConstants::YVES_PATH_CACHE_FILE] = sprintf(
    '%s/data/%s/cache/Yves/twig/.pathCache',
    APPLICATION_ROOT_DIR,
    'DE'
);
$config[TwigConstants::ZED_PATH_CACHE_FILE] = sprintf(
    '%s/data/%s/cache/Zed/twig/.pathCache',
    APPLICATION_ROOT_DIR,
    'DE'
);

/** Activate Zed Navigation Cache (Default On) **/
$config[ZedNavigationConstants::ZED_NAVIGATION_CACHE_ENABLED] = true;

/** Activate Class Resolver Cache **/
$config[KernelConstants::AUTO_LOADER_UNRESOLVABLE_CACHE_ENABLED] = true;

// ---------- Routing
$config[ApplicationConstants::YVES_SSL_ENABLED] = false;
$config[ApplicationConstants::ZED_SSL_ENABLED] = false;

$config[RouterConstants::YVES_IS_SSL_ENABLED] = false;
$config[RouterConstants::ZED_IS_SSL_ENABLED] = false;

// ---------- Session
$config[SessionConstants::YVES_SESSION_COOKIE_SECURE] = false;
$config[SessionConstants::ZED_SESSION_COOKIE_SECURE] = false;
$config[SessionConstants::ZED_SESSION_TIME_TO_LIVE] = SessionConfig::SESSION_LIFETIME_1_YEAR;
$config[SessionRedisConstants::ZED_SESSION_TIME_TO_LIVE] = $config[SessionConstants::ZED_SESSION_TIME_TO_LIVE];
$config[SessionFileConstants::ZED_SESSION_TIME_TO_LIVE] = $config[SessionConstants::ZED_SESSION_TIME_TO_LIVE];
/data/config/Shared/config_local_DE.php
<?php
use Spryker\Shared\Application\ApplicationConstants;
use Spryker\Shared\Collector\CollectorConstants;
use Spryker\Shared\Customer\CustomerConstants;
use Spryker\Shared\GlueApplication\GlueApplicationConstants;
use Spryker\Shared\Http\HttpConstants;
use Spryker\Shared\Kernel\KernelConstants;
use Spryker\Shared\Newsletter\NewsletterConstants;
use Spryker\Shared\ProductManagement\ProductManagementConstants;
use Spryker\Shared\PropelQueryBuilder\PropelQueryBuilderConstants;
use Spryker\Shared\Propel\PropelConstants;
use Spryker\Shared\RabbitMq\RabbitMqEnv;
use Spryker\Shared\Search\SearchConstants;
use Spryker\Shared\Session\SessionConstants;
use Spryker\Shared\Setup\SetupConstants;
use Spryker\Shared\Storage\StorageConstants;
use Spryker\Shared\ZedRequest\ZedRequestConstants;

/**  Yves host  **/
$config[ApplicationConstants::HOST_YVES] = '{{YVES_DE_HOST}}';

$config[ApplicationConstants::PORT_YVES] = '';
$config[ApplicationConstants::PORT_SSL_YVES] = '';
$config[ApplicationConstants::BASE_URL_YVES] = sprintf(
    'http://%s%s',
    $config[ApplicationConstants::HOST_YVES],
    $config[ApplicationConstants::PORT_YVES]
);
$config[ApplicationConstants::BASE_URL_SSL_YVES] = sprintf(
    'https://%s%s',
    $config[ApplicationConstants::HOST_YVES],
    $config[ApplicationConstants::PORT_SSL_YVES]
);
$config[ProductManagementConstants::BASE_URL_YVES] = $config[ApplicationConstants::BASE_URL_YVES];
$config[NewsletterConstants::BASE_URL_YVES] = $config[ApplicationConstants::BASE_URL_YVES];
$config[CustomerConstants::BASE_URL_YVES] = $config[ApplicationConstants::BASE_URL_YVES];
$config[ApplicationConstants::YVES_TRUSTED_HOSTS]
    = $config[HttpConstants::YVES_TRUSTED_HOSTS]
    = [];

/**  Zed host  **/
$config[ApplicationConstants::HOST_ZED] = '{{ZED_DE_HOST}}';

$config[ApplicationConstants::PORT_ZED] = '';
$config[ApplicationConstants::PORT_SSL_ZED] = '';
$config[ApplicationConstants::BASE_URL_ZED] = sprintf(
    'http://%s%s',
    $config[ApplicationConstants::HOST_ZED],
    $config[ApplicationConstants::PORT_ZED]
);
$config[ApplicationConstants::BASE_URL_SSL_ZED] = sprintf(
    'https://%s%s',
    $config[ApplicationConstants::HOST_ZED],
    $config[ApplicationConstants::PORT_SSL_ZED]
);
$config[ApplicationConstants::ZED_TRUSTED_HOSTS]
    = $config[HttpConstants::ZED_TRUSTED_HOSTS]
    = [];

$config[ZedRequestConstants::HOST_ZED_API] = $config[ApplicationConstants::HOST_ZED];
$config[ZedRequestConstants::BASE_URL_ZED_API] = $config[ApplicationConstants::BASE_URL_ZED];
$config[ZedRequestConstants::BASE_URL_SSL_ZED_API] = $config[ApplicationConstants::BASE_URL_SSL_ZED];

/**  Assets / Media   **/
$config[ApplicationConstants::BASE_URL_STATIC_ASSETS] = $config[ApplicationConstants::BASE_URL_YVES];
$config[ApplicationConstants::BASE_URL_STATIC_MEDIA] = $config[ApplicationConstants::BASE_URL_YVES];
$config[ApplicationConstants::BASE_URL_SSL_STATIC_ASSETS] = $config[ApplicationConstants::BASE_URL_SSL_YVES];
$config[ApplicationConstants::BASE_URL_SSL_STATIC_MEDIA] = $config[ApplicationConstants::BASE_URL_SSL_YVES];

/**  Session  **/
$config[SessionConstants::YVES_SESSION_COOKIE_NAME] = $config[ApplicationConstants::HOST_YVES];
$config[SessionConstants::YVES_SESSION_COOKIE_DOMAIN] = $config[ApplicationConstants::HOST_YVES];
$config[SessionConstants::ZED_SESSION_COOKIE_NAME] = $config[ApplicationConstants::HOST_ZED];


/** Database credentials **/
$config[PropelConstants::ZED_DB_DATABASE] = 'spryker_DE';

/** Elasticsearch  */
$config[ApplicationConstants::ELASTICA_PARAMETER__INDEX_NAME]
    = $config[CollectorConstants::ELASTICA_PARAMETER__INDEX_NAME]
    = $config[SearchConstants::ELASTICA_PARAMETER__INDEX_NAME]
    = 'de_search';

/** RabbitMQ **/
$config[RabbitMqEnv::RABBITMQ_API_VIRTUAL_HOST] = '/DE_spryker_zed';
$config[RabbitMqEnv::RABBITMQ_CONNECTIONS] = [
    'DE' => [
        RabbitMqEnv::RABBITMQ_CONNECTION_NAME => 'DE-connection',
        RabbitMqEnv::RABBITMQ_HOST => '{{RABBITMQ_HOST}}',
        RabbitMqEnv::RABBITMQ_PORT => '5672',
        RabbitMqEnv::RABBITMQ_PASSWORD => '{{RABBITMQ_PASSWORD}}',
        RabbitMqEnv::RABBITMQ_USERNAME => '{{RABBITMQ_USERNAME}}',
        RabbitMqEnv::RABBITMQ_VIRTUAL_HOST => '/DE_spryker_zed',
        RabbitMqEnv::RABBITMQ_STORE_NAMES => ['DE'],
        RabbitMqEnv::RABBITMQ_DEFAULT_CONNECTION => true,
  ],
];


// ----------- HTTP Security
$config[KernelConstants::DOMAIN_WHITELIST] = [
    $config[ApplicationConstants::HOST_YVES],
    $config[ApplicationConstants::HOST_ZED],
];
/data/config/Shared/config_local_AT.php
<?php
use Spryker\Shared\Application\ApplicationConstants;
use Spryker\Shared\Collector\CollectorConstants;
use Spryker\Shared\Customer\CustomerConstants;
use Spryker\Shared\GlueApplication\GlueApplicationConstants;
use Spryker\Shared\Http\HttpConstants;
use Spryker\Shared\Kernel\KernelConstants;
use Spryker\Shared\Newsletter\NewsletterConstants;
use Spryker\Shared\ProductManagement\ProductManagementConstants;
use Spryker\Shared\PropelQueryBuilder\PropelQueryBuilderConstants;
use Spryker\Shared\Propel\PropelConstants;
use Spryker\Shared\RabbitMq\RabbitMqEnv;
use Spryker\Shared\Search\SearchConstants;
use Spryker\Shared\Session\SessionConstants;
use Spryker\Shared\Setup\SetupConstants;
use Spryker\Shared\Storage\StorageConstants;
use Spryker\Shared\ZedRequest\ZedRequestConstants;

/**  Yves host  **/
$config[ApplicationConstants::HOST_YVES] = '{{YVES_AT_HOST}}';

$config[ApplicationConstants::PORT_YVES] = '';
$config[ApplicationConstants::PORT_SSL_YVES] = '';
$config[ApplicationConstants::BASE_URL_YVES] = sprintf(
    'http://%s%s',
    $config[ApplicationConstants::HOST_YVES],
    $config[ApplicationConstants::PORT_YVES]
);
$config[ApplicationConstants::BASE_URL_SSL_YVES] = sprintf(
    'https://%s%s',
    $config[ApplicationConstants::HOST_YVES],
    $config[ApplicationConstants::PORT_SSL_YVES]
);
$config[ProductManagementConstants::BASE_URL_YVES] = $config[ApplicationConstants::BASE_URL_YVES];
$config[NewsletterConstants::BASE_URL_YVES] = $config[ApplicationConstants::BASE_URL_YVES];
$config[CustomerConstants::BASE_URL_YVES] = $config[ApplicationConstants::BASE_URL_YVES];
$config[ApplicationConstants::YVES_TRUSTED_HOSTS]
    = $config[HttpConstants::YVES_TRUSTED_HOSTS]
    = [];

/**  Zed host  **/
$config[ApplicationConstants::HOST_ZED] = '{{ZED_AT_HOST}}';

$config[ApplicationConstants::PORT_ZED] = '';
$config[ApplicationConstants::PORT_SSL_ZED] = '';
$config[ApplicationConstants::BASE_URL_ZED] = sprintf(
    'http://%s%s',
    $config[ApplicationConstants::HOST_ZED],
    $config[ApplicationConstants::PORT_ZED]
);
$config[ApplicationConstants::BASE_URL_SSL_ZED] = sprintf(
    'https://%s%s',
    $config[ApplicationConstants::HOST_ZED],
    $config[ApplicationConstants::PORT_SSL_ZED]
);
$config[ApplicationConstants::ZED_TRUSTED_HOSTS]
    = $config[HttpConstants::ZED_TRUSTED_HOSTS]
    = [];

$config[ZedRequestConstants::HOST_ZED_API] = $config[ApplicationConstants::HOST_ZED];
$config[ZedRequestConstants::BASE_URL_ZED_API] = $config[ApplicationConstants::BASE_URL_ZED];
$config[ZedRequestConstants::BASE_URL_SSL_ZED_API] = $config[ApplicationConstants::BASE_URL_SSL_ZED];

/**  Assets / Media   **/
$config[ApplicationConstants::BASE_URL_STATIC_ASSETS] = $config[ApplicationConstants::BASE_URL_YVES];
$config[ApplicationConstants::BASE_URL_STATIC_MEDIA] = $config[ApplicationConstants::BASE_URL_YVES];
$config[ApplicationConstants::BASE_URL_SSL_STATIC_ASSETS] = $config[ApplicationConstants::BASE_URL_SSL_YVES];
$config[ApplicationConstants::BASE_URL_SSL_STATIC_MEDIA] = $config[ApplicationConstants::BASE_URL_SSL_YVES];

/**  Session  **/
$config[SessionConstants::YVES_SESSION_COOKIE_NAME] = $config[ApplicationConstants::HOST_YVES];
$config[SessionConstants::YVES_SESSION_COOKIE_DOMAIN] = $config[ApplicationConstants::HOST_YVES];
$config[SessionConstants::ZED_SESSION_COOKIE_NAME] = $config[ApplicationConstants::HOST_ZED];


/** Database credentials **/
$config[PropelConstants::ZED_DB_DATABASE] = 'spryker_AT';

/** Elasticsearch  */
$config[ApplicationConstants::ELASTICA_PARAMETER__INDEX_NAME]
    = $config[CollectorConstants::ELASTICA_PARAMETER__INDEX_NAME]
    = $config[SearchConstants::ELASTICA_PARAMETER__INDEX_NAME]
    = 'at_search';

/** RabbitMQ **/
$config[RabbitMqEnv::RABBITMQ_API_VIRTUAL_HOST] = '/AT_spryker_zed';
$config[RabbitMqEnv::RABBITMQ_CONNECTIONS] = [
    'AT' => [
        RabbitMqEnv::RABBITMQ_CONNECTION_NAME => 'AT-connection',
        RabbitMqEnv::RABBITMQ_HOST => '{{RABBITMQ_HOST}}',
        RabbitMqEnv::RABBITMQ_PORT => '5672',
        RabbitMqEnv::RABBITMQ_PASSWORD => '{{RABBITMQ_PASSWORD}}',
        RabbitMqEnv::RABBITMQ_USERNAME => '{{RABBITMQ_USERNAME}}',
        RabbitMqEnv::RABBITMQ_VIRTUAL_HOST => '/AT_spryker_zed',
        RabbitMqEnv::RABBITMQ_STORE_NAMES => ['AT'],
        RabbitMqEnv::RABBITMQ_DEFAULT_CONNECTION => true,
  ],
];

// ----------- HTTP Security
$config[KernelConstants::DOMAIN_WHITELIST] = [
    $config[ApplicationConstants::HOST_YVES],
    $config[ApplicationConstants::HOST_ZED],
];
/data/config/Shared/config_local_US.php
<?php
use Spryker\Shared\Application\ApplicationConstants;
use Spryker\Shared\Collector\CollectorConstants;
use Spryker\Shared\Customer\CustomerConstants;
use Spryker\Shared\GlueApplication\GlueApplicationConstants;
use Spryker\Shared\Http\HttpConstants;
use Spryker\Shared\Kernel\KernelConstants;
use Spryker\Shared\Newsletter\NewsletterConstants;
use Spryker\Shared\ProductManagement\ProductManagementConstants;
use Spryker\Shared\PropelQueryBuilder\PropelQueryBuilderConstants;
use Spryker\Shared\Propel\PropelConstants;
use Spryker\Shared\RabbitMq\RabbitMqEnv;
use Spryker\Shared\Search\SearchConstants;
use Spryker\Shared\Session\SessionConstants;
use Spryker\Shared\Setup\SetupConstants;
use Spryker\Shared\Storage\StorageConstants;
use Spryker\Shared\ZedRequest\ZedRequestConstants;

/**  Yves host  **/
$config[ApplicationConstants::HOST_YVES] = '{{YVES_US_HOST}}';

$config[ApplicationConstants::PORT_YVES] = '';
$config[ApplicationConstants::PORT_SSL_YVES] = '';
$config[ApplicationConstants::BASE_URL_YVES] = sprintf(
    'http://%s%s',
    $config[ApplicationConstants::HOST_YVES],
    $config[ApplicationConstants::PORT_YVES]
);
$config[ApplicationConstants::BASE_URL_SSL_YVES] = sprintf(
    'https://%s%s',
    $config[ApplicationConstants::HOST_YVES],
    $config[ApplicationConstants::PORT_SSL_YVES]
);
$config[ProductManagementConstants::BASE_URL_YVES] = $config[ApplicationConstants::BASE_URL_YVES];
$config[NewsletterConstants::BASE_URL_YVES] = $config[ApplicationConstants::BASE_URL_YVES];
$config[CustomerConstants::BASE_URL_YVES] = $config[ApplicationConstants::BASE_URL_YVES];
$config[ApplicationConstants::YVES_TRUSTED_HOSTS]
    = $config[HttpConstants::YVES_TRUSTED_HOSTS]
    = [];

/**  Zed host  **/
$config[ApplicationConstants::HOST_ZED] = '{{ZED_US_HOST}}';

$config[ApplicationConstants::PORT_ZED] = '';
$config[ApplicationConstants::PORT_SSL_ZED] = '';
$config[ApplicationConstants::BASE_URL_ZED] = sprintf(
    'http://%s%s',
    $config[ApplicationConstants::HOST_ZED],
    $config[ApplicationConstants::PORT_ZED]
);
$config[ApplicationConstants::BASE_URL_SSL_ZED] = sprintf(
    'https://%s%s',
    $config[ApplicationConstants::HOST_ZED],
    $config[ApplicationConstants::PORT_SSL_ZED]
);
$config[ApplicationConstants::ZED_TRUSTED_HOSTS]
    = $config[HttpConstants::ZED_TRUSTED_HOSTS]
    = [];

$config[ZedRequestConstants::HOST_ZED_API] = $config[ApplicationConstants::HOST_ZED];
$config[ZedRequestConstants::BASE_URL_ZED_API] = $config[ApplicationConstants::BASE_URL_ZED];
$config[ZedRequestConstants::BASE_URL_SSL_ZED_API] = $config[ApplicationConstants::BASE_URL_SSL_ZED];

/**  Assets / Media   **/
$config[ApplicationConstants::BASE_URL_STATIC_ASSETS] = $config[ApplicationConstants::BASE_URL_YVES];
$config[ApplicationConstants::BASE_URL_STATIC_MEDIA] = $config[ApplicationConstants::BASE_URL_YVES];
$config[ApplicationConstants::BASE_URL_SSL_STATIC_ASSETS] = $config[ApplicationConstants::BASE_URL_SSL_YVES];
$config[ApplicationConstants::BASE_URL_SSL_STATIC_MEDIA] = $config[ApplicationConstants::BASE_URL_SSL_YVES];

/**  Session  **/
$config[SessionConstants::YVES_SESSION_COOKIE_NAME] = $config[ApplicationConstants::HOST_YVES];
$config[SessionConstants::YVES_SESSION_COOKIE_DOMAIN] = $config[ApplicationConstants::HOST_YVES];
$config[SessionConstants::ZED_SESSION_COOKIE_NAME] = $config[ApplicationConstants::HOST_ZED];


/** Database credentials **/
$config[PropelConstants::ZED_DB_DATABASE] = 'spryker_US';

/** Elasticsearch  */
$config[ApplicationConstants::ELASTICA_PARAMETER__INDEX_NAME]
    = $config[CollectorConstants::ELASTICA_PARAMETER__INDEX_NAME]
    = $config[SearchConstants::ELASTICA_PARAMETER__INDEX_NAME]
    = 'us_search';

/** RabbitMQ **/
$config[RabbitMqEnv::RABBITMQ_API_VIRTUAL_HOST] = '/US_spryker_zed';
$config[RabbitMqEnv::RABBITMQ_CONNECTIONS] = [
    'US' => [
        RabbitMqEnv::RABBITMQ_CONNECTION_NAME => 'US-connection',
        RabbitMqEnv::RABBITMQ_HOST => '{{RABBITMQ_HOST}}',
        RabbitMqEnv::RABBITMQ_PORT => '5672',
        RabbitMqEnv::RABBITMQ_PASSWORD => '{{RABBITMQ_PASSWORD}}',
        RabbitMqEnv::RABBITMQ_USERNAME => '{{RABBITMQ_USERNAME}}',
        RabbitMqEnv::RABBITMQ_VIRTUAL_HOST => '/US_spryker_zed',
        RabbitMqEnv::RABBITMQ_STORE_NAMES => ['US'],
        RabbitMqEnv::RABBITMQ_DEFAULT_CONNECTION => true,
  ],
];

// ----------- HTTP Security
$config[KernelConstants::DOMAIN_WHITELIST] = [
    $config[ApplicationConstants::HOST_YVES],
    $config[ApplicationConstants::HOST_ZED],
];

Run the following commands:

composer global require hirak/prestissimo
composer install
composer require --no-update aws/aws-sdk-php

  1. Add Jenkins Max # of builds to keep configuration by updating the <numToKeep>-1</numToKeep> parameter in /data/vendor/spryker/setup/src/Spryker/Zed/Setup/Business/Model/Cronjobs.php to the desired one. For example, if you wanted to keep 100 items in the Jenkins history, you would change the parameter from -1 to 100 to look this way: <numToKeep>100</numToKeep>

  2. Create the following file:

/data/config/install/staging.yml
env:
    APPLICATION_ENV: staging

stores:
    - DE
    - AT
    - US

command-timeout: 3600

sections:

    hidden:
        excluded: true
        maintenance-all-on:
            command: "vendor/bin/console maintenance:enable"

        maintenance-all-off:
            command: "vendor/bin/console maintenance:disable"

        maintenance-zed-on:
            command: "vendor/bin/console maintenance:enable zed"

        maintenance-zed-off:
            command: "vendor/bin/console maintenance:disable zed"

        maintenance-yves-on:
            command: "vendor/bin/console maintenance:enable yves"

        maintenance-yves-off:
            command: "vendor/bin/console maintenance:disable yves"


    environment:
        console-environment:
            command: "if [ ! -f ./config/Shared/console_env_local.php ]; then cp ./config/Shared/console_env_local.dist.php ./config/Shared/console_env_local.php ; fi"


    clear:
        remove-logs:
            command: "vendor/bin/console log:clear"

        remove-cache:
            command: "vendor/bin/console cache:empty-all"

        remove-generated-files:
            command: "vendor/bin/console setup:empty-generated-directory"

    generate:
        generate-transfers:
            command: "vendor/bin/console transfer:generate"


    jenkins-down:
        jenkins-stop:
            command: "vendor/bin/console scheduler:clean"
            stores: true

    cache:
        router-cache-warmup-yves:
            command: "vendor/bin/yves router:cache:warm-up"

        router-cache-warmup-zed:
            command: "vendor/bin/console router:cache:warm-up"

        twig-cache-warmup:
            command: "vendor/bin/console twig:cache:warmer"

        navigation-cache-warmup:
            command: "vendor/bin/console navigation:build-cache"

        rest-request-validation-cache-warmup:
            command: "vendor/bin/console glue:rest:build-request-validation-cache"


    queue-flush:
        set-permissions:
            command: "vendor/bin/console queue:permission:set"
            stores: true

        purge-all-queues:
            command: "vendor/bin/console queue:queue:purge-all"
            stores: true

        delete-all-queues:
            command: "vendor/bin/console queue:queue:delete-all"
            stores: true

        delete-all-exchanges:
            command: "vendor/bin/console queue:exchanges:delete-all"
            stores: true


    database-flush:
        delete-elastic-search-index:
            command: "vendor/bin/console search:index:delete"
            stores: true
            groups:
                - elastic

        delete-storage:
            command: "vendor/bin/console storage:delete"
            stores: true
            groups:
                - redis

        drop-database:
            command: "vendor/bin/console propel:database:drop"
            pre: "hidden/maintenance-zed-on"
            stores:
                - US
                - DE
            groups:
                - propel

        delete-migration-files:
            command: "vendor/bin/console propel:migration:delete"
            stores:
                - US
                - DE
            groups:
                - propel


    database-migrate:
        propel-create:
            command: "vendor/bin/console propel:database:create"
            stores:
                - US
                - DE
            groups:
                - propel

        propel-postgres-compatibility:
            command: "vendor/bin/console propel:pg-sql-compat"
            stores:
                - US
                - DE
            groups:
                - propel

        propel-copy-schema:
            command: "vendor/bin/console propel:schema:copy"
            stores:
                - US
                - DE
            groups:
                - propel

        propel-build:
            command: "vendor/bin/console propel:model:build"
            groups:
                - propel

        propel-diff:
            command: "vendor/bin/console propel:diff"
            stores:
                - US
                - DE
            groups:
                - propel

        propel-migration-check:
            command: "vendor/bin/console propel:migration:check"
            breakOnFailure: false
            stores:
                - US
                - DE
            groups:
                - propel

        maintenance-page-enable:
            command: "vendor/bin/console maintenance:enable"
            stores: true
            condition:
                command: "propel-migration-check"
                ifExitCode: 2

        propel-migrate:
            command: "vendor/bin/console propel:migrate"
            stores:
                - US
                - DE
            groups:
                - propel

        maintenance-page-disable:
            command: "vendor/bin/console maintenance:disable"
            stores: true

        generate-entity-transfer:
            command: "vendor/bin/console transfer:entity:generate"

        init-database:
            command: "vendor/bin/console setup:init-db"
            stores:
                - US
                - DE

        setup-search-create-sources:
            command: "vendor/bin/console search:setup:sources"
            stores: true
            groups:
                - elastic

        setup-seach-create-source-map:
            command: "vendor/bin/console search:setup:source-map"
            stores: true
            groups:
                - elastic

    demodata:
        import:
            command: "vendor/bin/console data:import"
            stores:
                - US
                - DE

        update-product-labels:
            command: "vendor/bin/console product-label:relations:update"
            stores:
                - US
                - DE

    jenkins-up:
        jenkins-generate:
            command: "vendor/bin/console scheduler:setup"
            stores: true

        jenkins-enable:
            command: "vendor/bin/console scheduler:resume"
            stores: true

    frontend:
        dependencies-install:
            command: "vendor/bin/console frontend:project:install-dependencies -vvv"
            groups:
                - project

        yves-build-frontend:
            command: "vendor/bin/console frontend:yves:build -vvv"
            groups:
                - yves

        zed-build-frontend:
            command: "vendor/bin/console frontend:zed:build"
            groups:
                - zed
  1. Run the transfer:generate and propel:install commands:
export APPLICATION_ENV=staging
vendor/bin/console transfer:generate -vvv
vendor/bin/console propel:install -vvv
vendor/bin/console transfer:generate -vvv
  1. Run the installation command:
APPLICATION_ENV=staging vendor/bin/install -vvv
  1. Change owner of the data folder:
sudo chown -R www-data:www-data /data

Make sure to provide a secure configuration of Zed service. Sufficient security is not provided by “Basic AUTH” based on web server configuration, IP address restriction, or direct VPN connection to the server.

Requirements

RDS:

REQUIREMENT VALUE
Instance type >= db.t2.micro
Database type:
PostgreSQL >= 9.6—Default and preferred
MySQL >= 5.7
Public accessibility no

Elasticsearch Service:

REQUIREMENT VALUE
Instance type >= t2.small.elasticsearch
Elasticsearch version 5.6
Volume size >= 10 GB
Endpoint VPC

EC2:

REQUIREMENT VALUE
Instance type >= t2.medium
Storage size >= 20Gb
OS Ubuntu 18.04

Security groups:

REQUIREMENT VALUE
Incoming ports 22, 80, 443

List of connections:

REQUIREMENT VALUE
Nginx TCP: 80, 443 (Any)
Yves, Glue, Zed TCP: 9000 ( Nginx )
Jenkins TCP: 8080 ( Nginx )
PostgreSQL TCP: 5432 ( Zed )
RabbitMQ TCP: 5672, 15672 ( Zed )
Redis TCP: 6379 ( Yves, Glue, Zed )
Elasticsearch TCP: 9200 ( Yves, Glue, Zed )

AWS services Setup validation: RDS latency check

Perform RDS LatencyCheck by running the following commands.

AWS services Setup validation: PostgreSQL

export PGPASSWORD={{RDS_PASSWORD}}
/usr/bin/pgbench -i -h {{RDS_ENDPOINT}} -p 5432 -U {{RDS_USERNAME}} -d {{RDS_DATABASE}}
/usr/bin/pgbench -c 10 -h {{RDS_ENDPOINT}} -p 5432 -U {{RDS_USERNAME}} -d {{RDS_DATABASE}}

Benchmark result examples: Average latency for db.t2.micro / db.t2.micro—29 ms.

MySQL

sudo apt-get -y install mysql-client
mysqlslap --host= {{RDS_ENDPOINT}} --user={{RDS_USERNAME}} --concurrency=50 --iterations=10 --password={{RDS_PASSWORD}} --auto-generate-sql --verbose
Benchmark result examples:

An average number of seconds to run all queries: 0.739 seconds—db.t2.small.

An average number of seconds to run all queries: 0.485 seconds—db.t2.medium.

Redis latency check

redis-cli --latency -h {{ELASTICACHE_ENDPOINT}} -p 6379
Benchmark result examples:

avg: 0.48 (20038 samples)—cache.t2.micro
avg: 0.31 (20047 samples)—cache.t2.medium)

List of connections

The following diagram illustrates the connections:

List of connections
